Branch Indoor Optic Cable 6 8 12 24 36 cores Single Mode G652D For Distribution
| Miejsce pochodzenia | Szantung, Chiny |
|---|---|
| Nazwa handlowa | EBOCOM |
| Orzecznictwo | ISO TLC |
| Numer modelu | Kabel odgałęziony |
| Minimalne zamówienie | 2000 m |
| Cena | EXW ≥2000m $0.16/M ≥5000m $0.14/M |

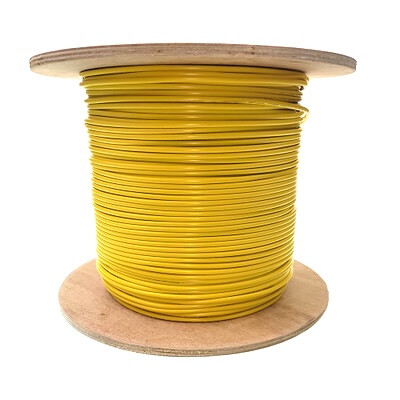

| Szczegóły pakowania | 1. Bęben z drewna żelaza lub drewniany drewniany bęben, normalny drewniany bęben. 2 |
| Czas dostawy | 5-8 dni |
| Zasady płatności | T/T |
| Możliwość Supply | 5000 km/dzień |
Skontaktuj się ze mną o darmowe próbki i kupony.
Co to jest?:0086 18588475571
Wechat: 0086 18588475571
Skype'a: sales10@aixton.com
Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.
xSzczegóły Produktu
| Nazwa produktu | Kabel odgałęziony | Kurtka | PCV /LSZH |
|---|---|---|---|
| Członek siły | Przędza aramidowa | błonnik | Pojedynczy tryb/wiele trybów |
| Marka | Ebocom lub OEM | ||
| Podkreślić | Indoor Optic Cable 36 Cores,24 Branch Indoor Optic Cable,6 Branch Indoor Optic Cable |
||
opis produktu
Description

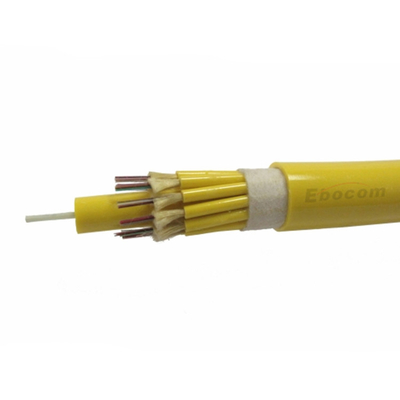

This is a multi-purpose optical fibre branch cable with a twisted cable structure. It is composed of tight buffer fibre, FRP and aramid strength components. External PVC or LSZH jacket.
The optical fibre branch cable is a kind of stranded multi-purpose cable. For example, it is widely used as indoor power distribution cables and backbone cables in buildings.
All tight cushioning fibres are wrapped and protected with aramid yarn. Tight cushioning fibre and aramid yarn are completed separately from the base jacket. Then, all fibre units revolve around fibre-reinforced plastic centre strength elements. Waterproof tape can be added between the stranded unit and the external PVC or LSZH sheath.
Features
Central FRP strength member
Stranded tight buffer fiber units provides excellent tensile performance
Corrosion resistant and waterproof outer sheath
Environment friendly jacket material
Flame retardant outer sheath for indoor and building safety application
Aramid yarn in tight buffer fibers also improves the tensile standard
Applications
Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.
- Duplex optical fiber active link jumpers and pigtails;
- Indoor shaft level and forced ventilation level wiring;
- Interconnection of instruments and communication
