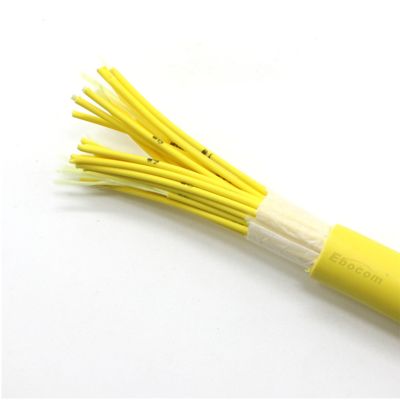

GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket

  • GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket
  • GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket
Miejsce pochodzenia CHINY
Nazwa handlowa Ebocom
Orzecznictwo ISO
Numer modelu GJBFJH
Minimalne zamówienie 2000m
Cena 0.1 USD per Meter
Szczegóły pakowania Bęben z sklejki lub kustentowany
Czas dostawy 3-10 dni
Zasady płatności L/C, T/T.
Możliwość Supply 50 km dziennie

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

Wechat: 0086 18588475571

Skype'a: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Rdzeń 2-48Fiber Członek siły Przędza aramidowa/przędza poliestru
Osłona LSZH Temperatura -20 do 70°C
Certyfikaty ISO Bufor włóknisty Ścisłe włókno buforowe
Typ światłowodowy SM Kolor światłowodowy Patrz Chromatogram
Podkreślić

Indoor breakout fiber optic cable

,

Single mode LSZH fiber cable

,

4-48 core fiber optic cable
Zostaw wiadomość
opis produktu

The GJBFJH indoor breakout fiber optic cable is specially designed for indoor fiber distribution and patching systems that require flexibility, safety, and reliability.

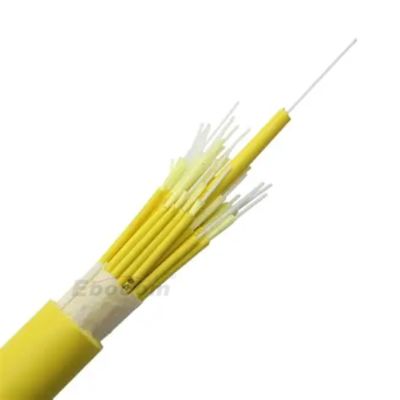

This cable adopts a central FRP (Fiber Reinforced Plastic) strength member, surrounded by multiple 2.0mm sub-units, each consisting of a tight-buffered fiber, aramid or polyester yarns, and an LSZH (Low Smoke Zero Halogen) outer jacket.
It ensures easy termination, excellent mechanical strength, and low signal loss, making it ideal for data centers, FTTH networks, office buildings, and telecom rooms.

Key Features

  • Stable performance: High-quality single-mode G.657A1 or G.652D fiber ensures low attenuation and stable transmission.

  • Reliable strength: Central FRP member and aramid yarn reinforcement provide excellent tensile and crush resistance.

  • Fire safety: LSZH sheath offers flame retardant, low smoke, and halogen-free protection for indoor environments.

  • Easy handling: Each sub-unit can be directly connected, terminated, or re-routed, simplifying installation and maintenance.

  • Wide applications: Suitable for LAN networks, distribution frames, FTTH wiring, and indoor backbone cabling.

Applications

  • Data centers and telecom rooms

  • Building backbone cabling

  • FTTH and FTTB systems

  • Indoor distribution and patching networks

  • Optical communication equipment interconnection

Technical Parameters

Item Description
Cable Type GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type Single Mode (G.657A1 / G.652D)
Fiber Count 2–48 cores (customizable)
Sub-unit Structure 2.0mm tight-buffered fiber + Aramid/Polyester yarns + LSZH jacket
Central Strength Member FRP (Fiber Reinforced Plastic)
Outer Jacket Material LSZH (Low Smoke Zero Halogen)
Outer Diameter 7.0–12.0mm (depending on fiber count)
Tensile Strength ≥ 1500N
Crush Resistance ≥ 1000N/100mm
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Color Options Yellow (SM)
