ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
Skontaktuj się ze mną o darmowe próbki i kupony.
Co to jest?:0086 18588475571
Wechat: 0086 18588475571
Skype'a: sales10@aixton.com
Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.
xSzczegóły Produktu
| Kurtka | Pojedyncza kurtka | Nazwa elementu | Kabel MINI ADSS |
|---|---|---|---|
| Długość kabla | Dostosowywanie | Typ światłowodowy | Pojedynczy tryb |
| Członek siły | FRP | Długość życia | Ponad 30 lat |
| Pakiet | 3 km/4 km/5 km na bęben | Model światłowodowy | G.652 lub na żądanie |
| Długość pakietu | 2 km/3 km/5 km lub jako Twoje żądanie | Struktura kablowa | Pozostałe urządzenia, z wyłączeniem tych objętych pozycją 9403 |
| Podkreślić | ASU FRP strength tube drop cable,HDPE drop cable for fiber optic,self-supporting ADSS fiber optic cable |
||
opis produktu
Product Overview

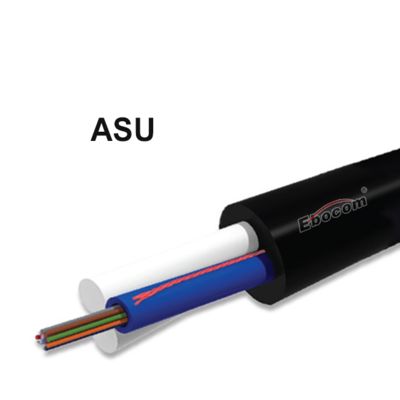

Ebocom’s ASU Mini ADSS Fiber Optic Cable, also known as Mini ADSS Cable, is designed for aerial installations in FTTH networks, power line communication, and outdoor telecom projects.

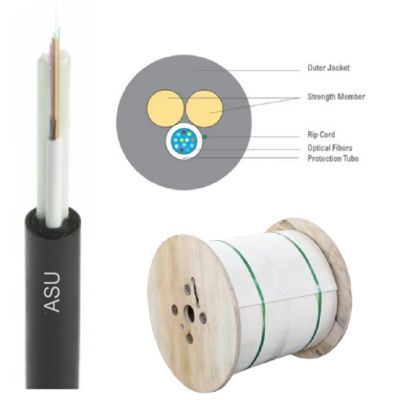

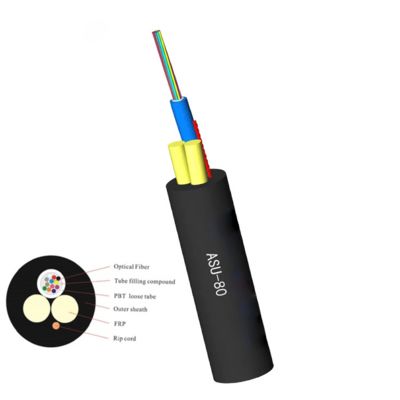

This compact cable features two parallel FRP (Fiber Reinforced Plastic) strength members and one central loose tube containing single-mode or multimode fibers.
The outer diameter can be customized to meet specific project requirements, ensuring a perfect fit for different spans and environmental conditions.
With its all-dielectric self-supporting design, the ASU Mini ADSS cable delivers excellent tensile strength, lightweight construction, and reliable long-distance signal transmission without the need for grounding or metallic support.
Key Features
-
Compact Mini ADSS Structure: Two FRP strength members + one central loose tube for superior mechanical strength and flexibility.
-
Custom Outer Diameter: Tailored to customer specifications for various aerial spans and installations.
-
All-Dielectric Design: No metallic components, safe for high-voltage environments, no grounding required.
-
Durable Jacket: UV-resistant, waterproof, and weatherproof sheath for long-term outdoor use.
-
High Performance: Low attenuation and stable optical transmission over long distances.
-
Wide Application: Ideal for FTTH deployment, pole-to-pole aerial wiring, power line communication, and rural broadband networks.
Typical Applications
-
FTTH and FTTx broadband networks
-
Power line communication and distribution networks
-
Rural and urban aerial fiber deployments
-
Pole-to-pole telecom projects
-
Industrial parks and smart grid communication
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | Single-mode G.652D / G.657A1 / G.657A2 (customizable) |
| Core Count | 2–24 fibers (as required) |
| Structure | Two parallel FRP strength members + central loose tube |
| Outer Diameter | Customizable according to span and project needs |
| Strength Member | FRP (Fiber Reinforced Plastic), high tensile strength |
| Jacket Material | UV-resistant PE / LSZH (optional) |
| Installation Span | Typically up to 100 m (custom span options available) |
| Operating Temperature | -40°C to +70°C |
| Standards | Complies with IEC 60794, ITU-T G.652D/G.657, RoHS |
Why Choose Ebocom ASU Mini ADSS Cable?
-
Flexible Customization: Diameter, fiber count, and jacket color all available to match your project.
-
Proven Quality: Produced in ISO-certified facilities with strict quality control and full-length testing.
-
Fast Delivery: High daily production capacity ensures quick lead times for urgent orders.
-
Global Export Experience: Shipped to telecom operators and contractors worldwide for FTTH and power line projects.
